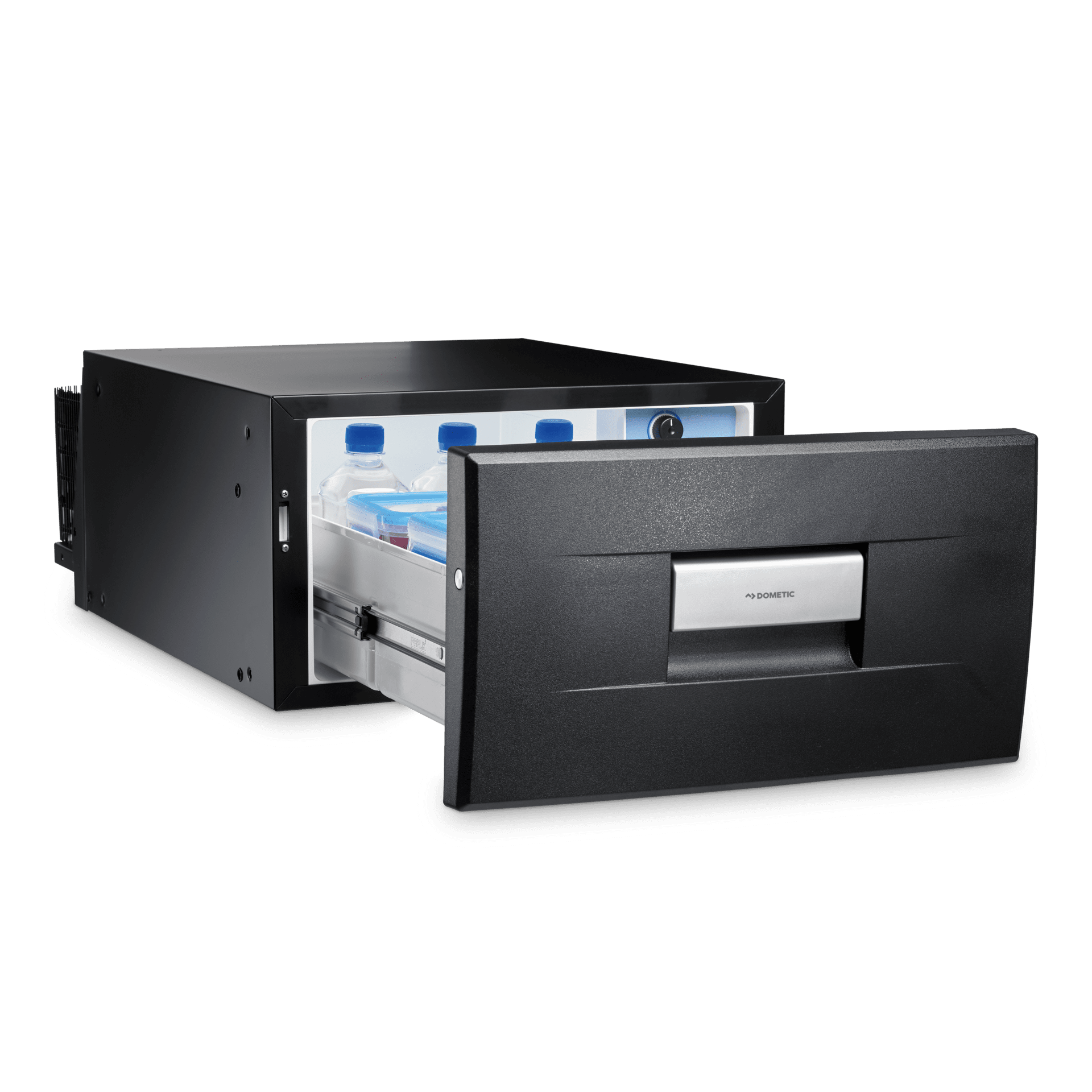

Dometic CoolMatic CD30 30L - Compressor Drawer Fridge
The Dometic CoolMatic CD30 is a compact 30L compressor drawer fridge designed to make use of spaces where a conventional upright fridge may not fit. Its low profile pull-out design makes it particularly well suited to campervans, motorhomes and boats, including installation beneath beds, seats or worktops.
The fridge runs from a 12V or 24V DC electrical system and provides adjustable refrigeration from approximately -2°C to +12°C. A continuously variable thermostat allows you to control the temperature to suit your food and drinks, whilst the compressor provides efficient and quiet cooling for mobile use.
Key features of the Dometic CoolMatic CD30
- 30L internal capacity
- 12V or 24V DC operation
- Adjustable cooling temperature from -2°C to +12°C
- Compact pull-out drawer design for confined spaces
- Continuously variable thermostat
- Low-voltage protection for your vehicle starter battery
- Secure locking mechanism
- Easy-pull drawer running on roller-bearing slides
- Detachable cooling unit for flexible installation
Flexible installation
One of the main advantages of the CoolMatic CD30 is its remotely mounted cooling unit. The compressor can be positioned on either side of the refrigerator or installed up to 1.5m away, giving you more freedom when working around wheel arches, furniture and other equipment inside a campervan or motorhome.
Its flat 440mm wide by 250mm high profile allows the fridge to fit into spaces that would otherwise be difficult to use for refrigeration. The complete unit is approximately 730mm deep and weighs 18kg.
Efficient compressor cooling
The CoolMatic CD30 uses compressor refrigeration rather than thermoelectric cooling, allowing it to maintain a controlled internal temperature independently of normal changes in ambient temperature. Its operating range of -2°C to +12°C makes it suitable for everyday refrigerated food and drink storage.
The rated current draw is 3A at 12V or 1.5A at 24V. Built-in low-voltage protection switches the fridge off if the supply voltage falls too far, helping protect the vehicle battery from excessive discharge.
If you're calculating the battery capacity required to run your fridge alongside the other loads in your campervan or motorhome, you can use our free electrical system design service for help specifying your system.
Convenient drawer access
The drawer arrangement allows you to access food and drinks from above, which can be particularly practical when the fridge is installed low down beneath furniture. Roller-bearing slides allow the drawer to pull out smoothly, whilst the locking mechanism keeps it securely closed when travelling.
Looking for other campervan fridges?
View our full range of Dometic campervan fridges and cool boxes ❄️
Product SKU: CD0030
