Dometic RC10.4M.90 – Compressor Fridge – 90L Fridge Freezer
The Dometic RC10.4M.90 is a compact 12V compressor fridge freezer designed for campervans and other installations where space is limited. Its 90L gross capacity provides useful food and drink storage, while the separately mounted compressor unit gives you more freedom when fitting the fridge into tight cabinetry.
With the freezer compartment installed, the RC10.4M.90 provides 75.5L of refrigerator space and a 7.5L frozen compartment, giving a total net capacity of 83L. Remove the freezer when you need additional refrigerator space, increasing the usable fridge capacity to approximately 85L.
Key features of the Dometic RC10.4M.90
- 90L gross capacity
- 83L total net capacity with freezer installed
- 75.5L refrigerator compartment
- 7.5L removable freezer compartment
- 12V DC compressor refrigeration
- Detachable compressor unit for flexible installation
- Performance and Quiet operating modes
- Average power input: 45W
- Quiet mode noise level: 39dB(A)
Flexible fridge and freezer storage
The removable freezer compartment lets you adapt the interior depending on the type of trip you're planning. Keep it fitted when you need dedicated frozen storage, or remove it to increase the available refrigerator capacity to around 85L.

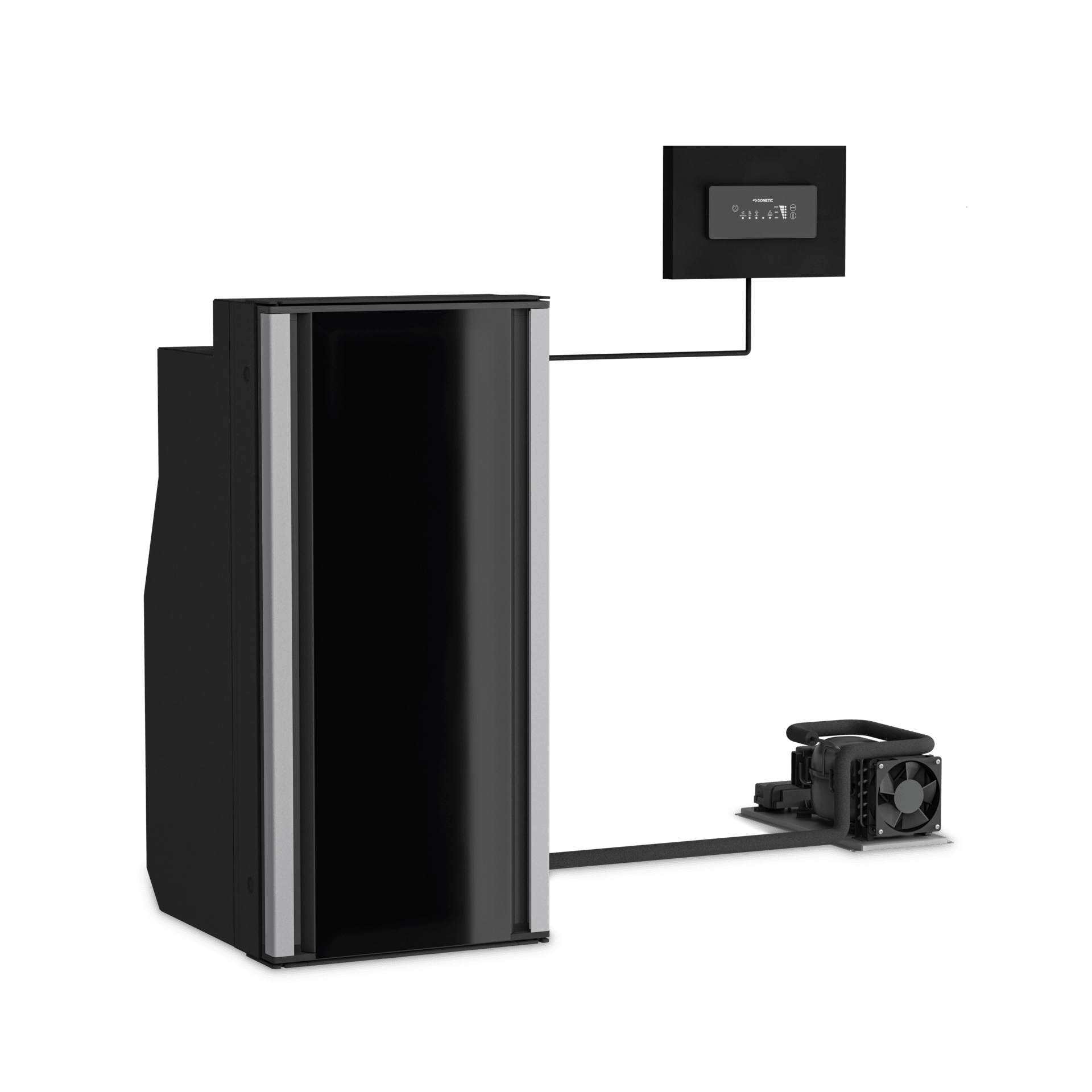

Flexible compressor installation
The RC10.4M.90 uses a separate compressor unit rather than housing the compressor permanently inside the fridge cabinet. This allows the cooling unit to be mounted elsewhere in the vehicle, helping you make better use of limited installation space.
The refrigerator cabinet measures approximately 901mm high, 420mm wide and 485mm deep without the compressor unit. The separate compressor measures approximately 169mm x 185mm x 396mm.
Power consumption
The Dometic RC10.4M.90 has an average power input of 45W. In Performance mode, energy consumption is approximately 0.45kWh per 24 hours, equivalent to around 37.5Ah per day from a 12V battery system.
If you're calculating the battery capacity required to run your fridge alongside the other loads in your campervan or motorhome, you can use our free electrical system design service for help specifying your system.
Quiet compressor refrigeration
The RC10.4M.90 offers Performance and Quiet operating modes, allowing you to prioritise cooling performance or reduced operating noise. Noise levels are approximately 42dB(A) in Performance mode and 39dB(A) in Quiet mode.
Looking for other campervan fridges?
View our full range of Dometic campervan fridges and cool boxes ❄️
Product SKU: 9620017821
