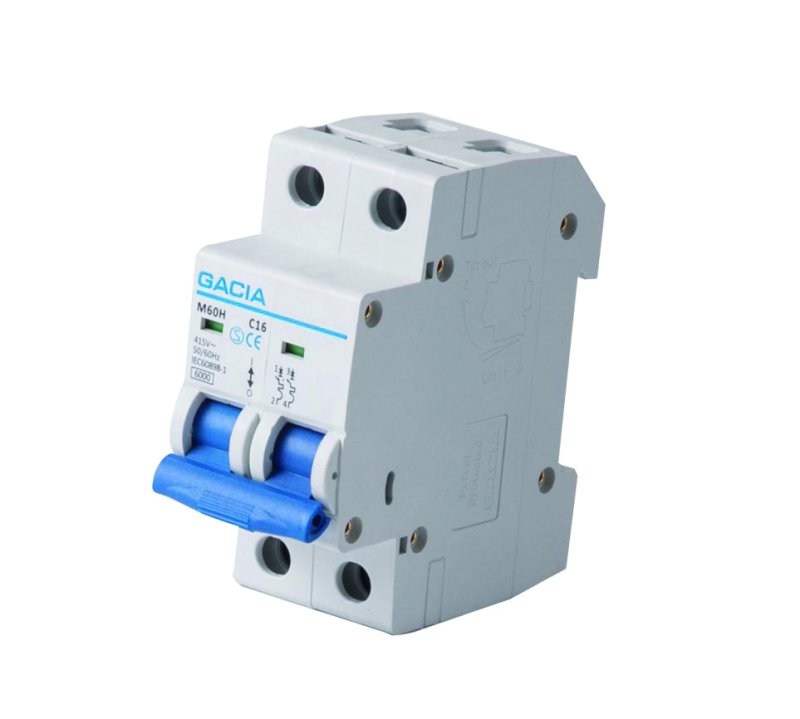

Double pole MCB – 10A‚ 16A‚ or 20A

£14.95

A miniature circuit breaker (MCB) protects your electrical system from overloads caused by short circuits. If an overcurrent is detected, the MCB trips and breaks the circuit. An essential component for a safe electrical system incorporating AC power.

  • Choose between 3 amperage ratings: 10A, 16A, or 20A
  • C-curve operation is perfectly suited to campervan electrical systems
  • Double pole operation breaks all live circuits, in accordance with UK safety regulations

Sorry, this product is not available to purchase in your country.

SKU: L210A10 + L210A16 + L210A20 Category:

£14.95

In stock - 1-2 day dispatch

£0.15 of this purchase goes to planting trees and advancing access to solar energy 🌱
Find out more

Campervan electrics leaving you confused?

Our team of engineers will design your perfect system, bespoke to your needs 👌
Discover more It's free

    Double pole MCB – 10A, 16A, or 20A

    A miniature circuit breaker (MCB) protects your electrical system from overloads caused by short circuits. If an overcurrent is detected, the MCB trips and breaks the circuit. If you use AC power in your campervan, either from an inverter or shore power, you need an MCB for a safe electrical system.

    What do the specifications mean?

    • Amperage rating – the MCB will trip and break your AC circuit when more than the amperage rating (either 10A, 16A, or 20A) passes through it. In a 230V system, this means that you can draw up to 2300W with the 10A version, 3680W with the 16A version, or 4600W with the 20A version before it trips.
    • C-curve – This means that the MCB will trip between five and ten times the rated current. Households tend to have a mix of B (which trip quicker) and C curve MCBs, to protect various appliances. As there are fewer plugs and usually only a few MCBs in a van, it’s common to only use C curve MCBs. This is perfectly safe and suitable for a range of applications within your campervan, from protecting lighting circuits to more intensive equipment such as air conditioning units or kitchen appliances.
    • Double pole – British standards require that MCBs “break all live conductors”. As live and neutral wires are both live, a campervan should have double pole MCBs which break both conductors in a short circuit.

    MCB installation

    As with any electrical component, we recommend that an MCB installation should be performed by a qualified electrician. For guidance on your MCB installation including consumer unit wiring diagram, check out our electric hook up guidebook page.

    Products that give back

    We are members of 1% for the Planet. This means that for every product purchased from Nohma, 1% of the total cost will be given to The Honnold Foundation, to provide solar power to underprivileged communities. If you want your electrical system to have more of a positive impact, purchasing your components from us at Nohma will mean you can give back as well as powering your off-grid system.

    Product SKU: L210A10 / L210A16 / L210A20


    Weight 0.2 kg
    Dimensions 4 × 8 × 8 cm
    Voltage rating

    400V

    System type

    50Hz/60Hz AC

    Product or kit

    Product
