Scanstrut Roam - Gravity Fill Water Inlet - SC-R-W1

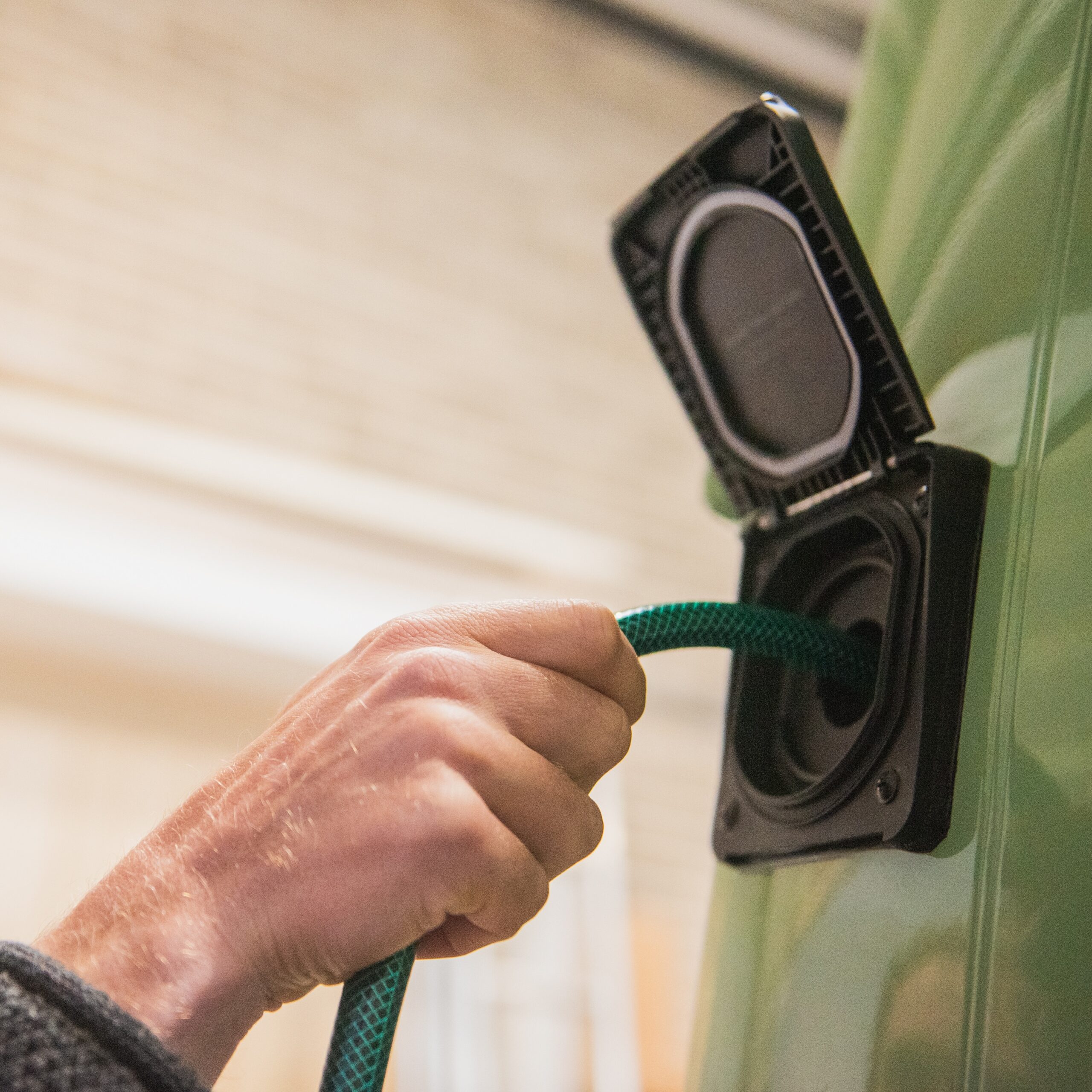

The Scanstrut Roam Gravity Fill Water Inlet gives you a lockable external filler for topping up an onboard fresh water tank from a hose or water container. Its 18 degree downward feed helps direct water into the tank, whilst the built-in breather connection allows displaced air to escape during filling.
The rear fill connection can be used with 35mm internal diameter hose, or the first stage can be removed using the moulded saw guide for 38 - 40mm internal diameter hose. The breather connection is designed for 10mm internal diameter hose. Scanstrut quotes an installation depth of approximately 70.5mm.
Materials in contact with the water are glass-filled polypropylene and are stated by Scanstrut as meeting NSF / ANSI 61 and WRAS requirements for drinking water contact. The filler cap is lockable and supplied with two keys.
Features of the Scanstrut Roam Gravity Fill Water Inlet

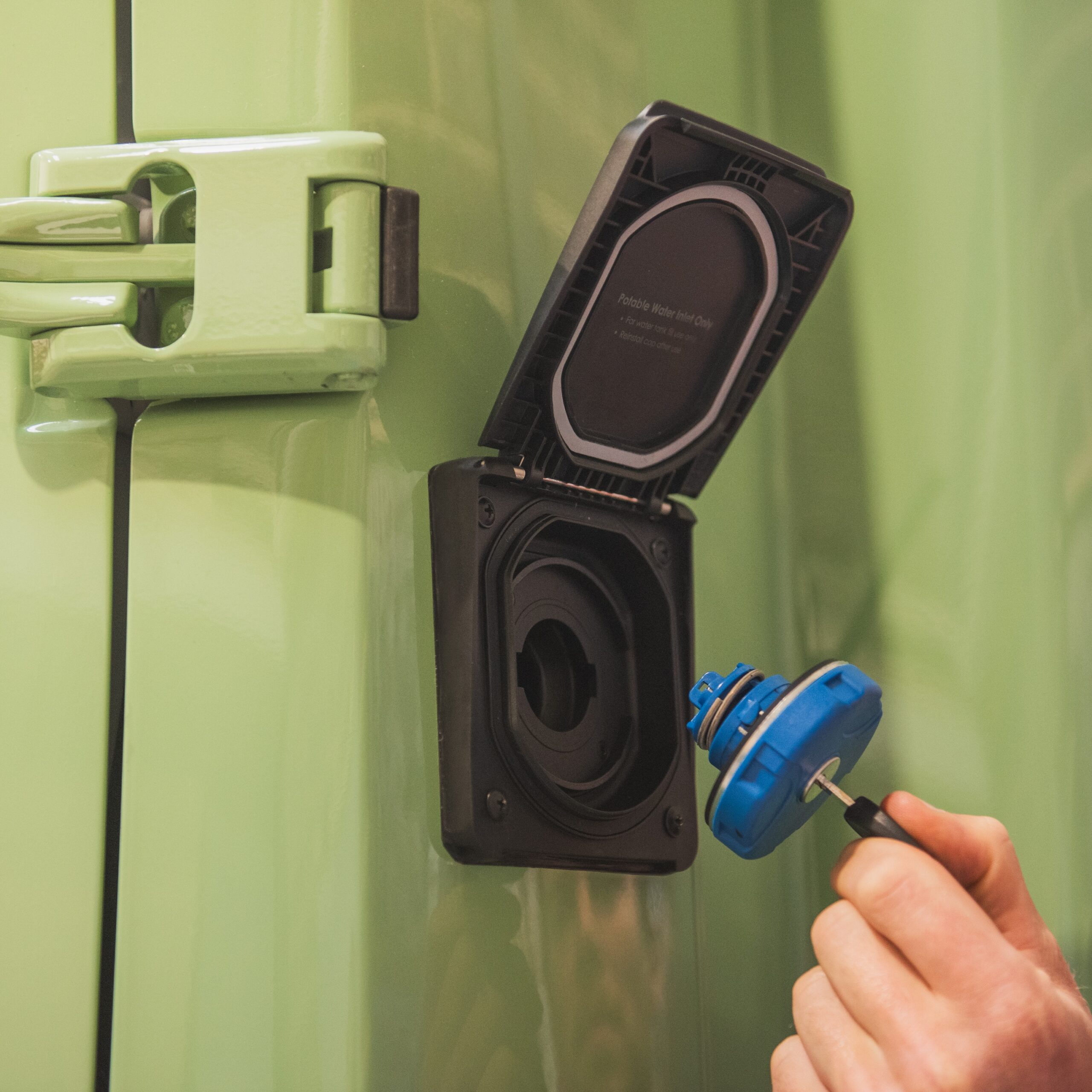

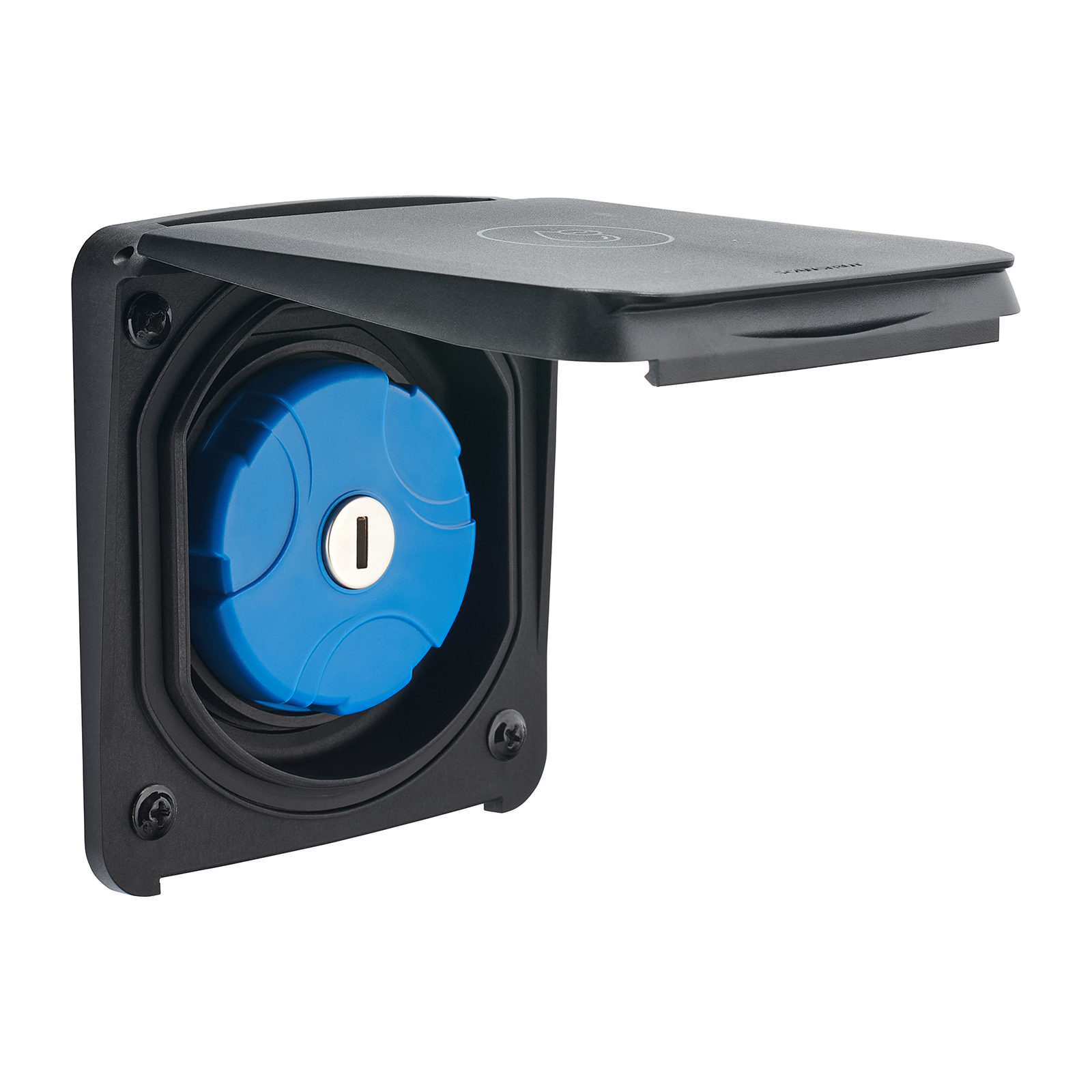

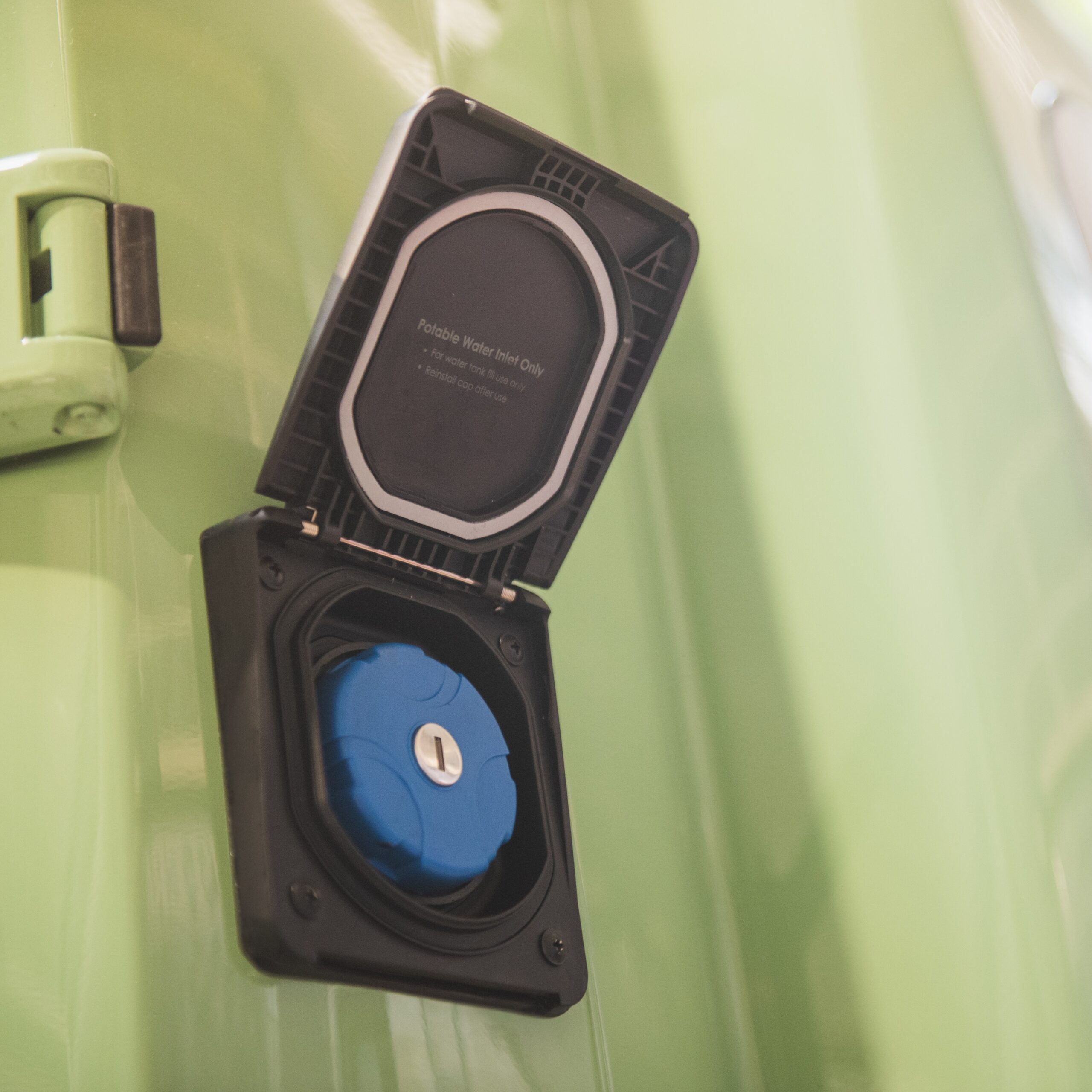

- Lockable filler cap with two keys
- 18 degree downward feed
- Built-in 10mm breather connection
- Compatible with 35mm or 38 - 40mm fill hose
- Drinking water-safe materials to NSF / ANSI 61 and WRAS requirements
- IP68 / IP69K with the cover closed
- Marine-grade 316 stainless steel hardware
- Scanstrut describes it as smallest in class
- Requires a 95mm hole saw for installation
Products that give back
For every product purchased from Nohma, we make a donation to The Honnold Foundation, to provide solar power to underprivileged communities. If you want your electrical system to have more of a positive impact, purchasing your components from us at Nohma will mean you can give back as well as powering your off-grid system.
Product SKU: SC-R-W1 / 121651
