Scanstrut Roam - Multi-Power Outlet - SC-R-M1

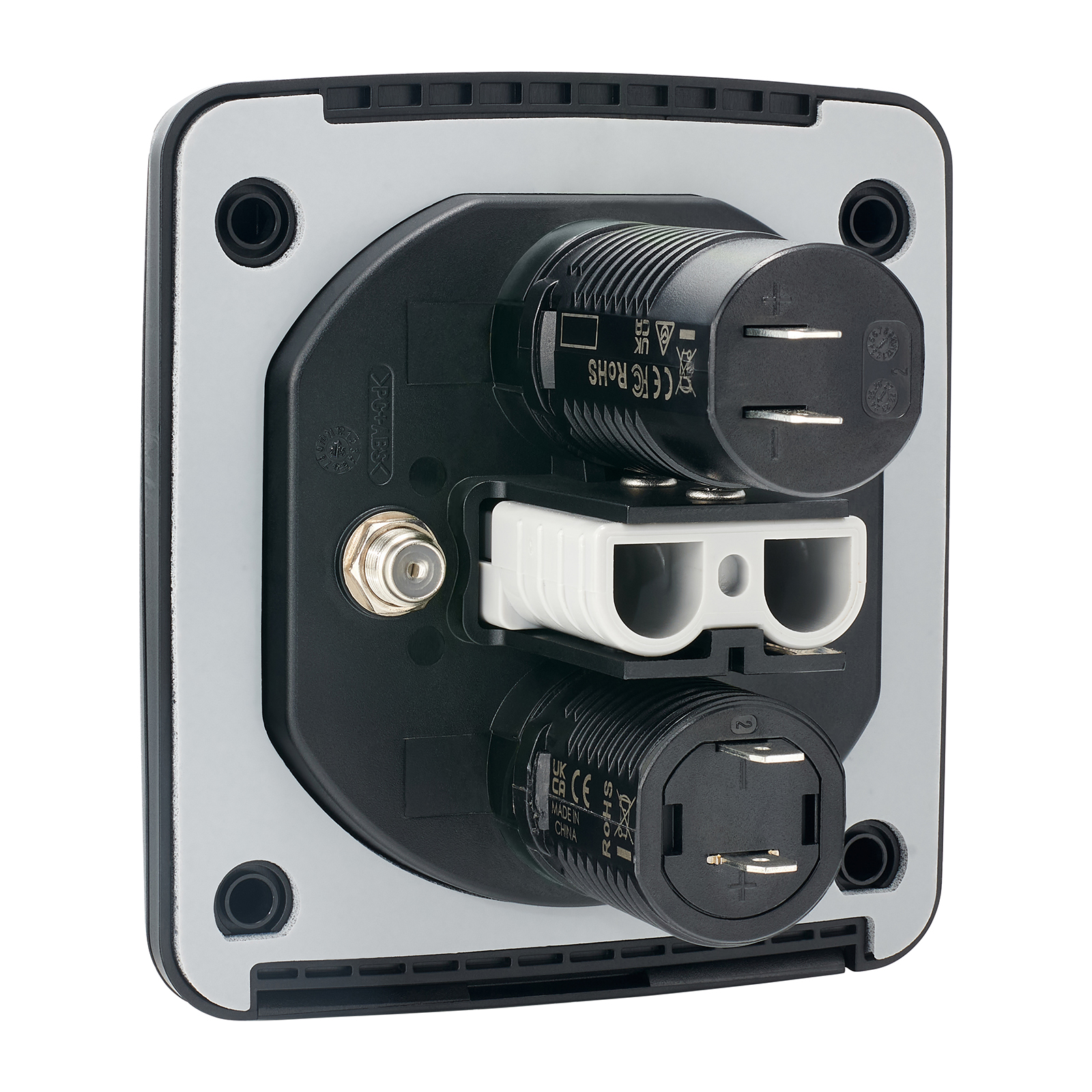

The Scanstrut Roam Multi-Power Outlet combines several useful external electrical and connectivity points in one housing, so you can avoid fitting a collection of separate sockets around the outside of your campervan. Under the lid you get a 12V power outlet, dual USB-C, an Anderson SB50 50A connection and dual F-type SAT / TV connections.
The 12V outlet accepts a 10 - 15V DC input and is rated to a maximum of 15A or 225W. The USB-C input accepts 10 - 32V DC, with charging profiles up to 12V 3A on a 12V system and up to 20V 3A on a 24V system. The grey Anderson SB50 connection is rated to 50A, with maximum power delivery of 600W at 12V, 1200W at 24V and 2400W at 48V.
The two SAT / TV connections use 75 ohm nickel-plated brass F-type coaxial connectors. SB50 terminal crimps are not included, and Scanstrut specifies that genuine Anderson Power connectors and terminal crimps should be used.
Features of the Scanstrut Roam Multi-Power Outlet
- 12V power, dual USB-C, Anderson SB50 50A and dual SAT / TV connections
- IP68 / IP69K with the cover closed
- Marine-grade 316 stainless steel hardware
- Fully sprung lid with 90 degree hold-open feature
- Mounting foam gasket included
- Scanstrut describes it as smallest in class
- Requires a 95mm hole saw for installation
Products that give back
For every product purchased from Nohma, we make a donation to The Honnold Foundation, to provide solar power to underprivileged communities. If you want your electrical system to have more of a positive impact, purchasing your components from us at Nohma will mean you can give back as well as powering your off-grid system.
Product SKU: SC-R-M1 / 121648
