"Adventurer - folded" - Pre-built folded campervan electrical system
The Adventurer is a powerful 300Ah campervan electrical system designed for longer trips, regular off-grid stays and higher power usage.
Everything you need to install your electrical system is included, from the main electrical components and lithium battery to the cables, fuses, fixings and smaller installation parts. There's no need to source individual components or work out which cables and accessories you'll need.
Choose exactly how you want your system supplied, from a self-build kit with all the preparation done for you, through to a fully installed system at our Plymouth workshop.
Choose how your system is supplied
- Self-build kit - want to build the system yourself without starting completely from scratch? We supply the hex ply mounting boards with pre-drilled component holes, alongside all the required fixings. Your cables are pre-cut to the correct lengths and pre-crimped, ready for you to mount the components and connect everything together following our guidance.

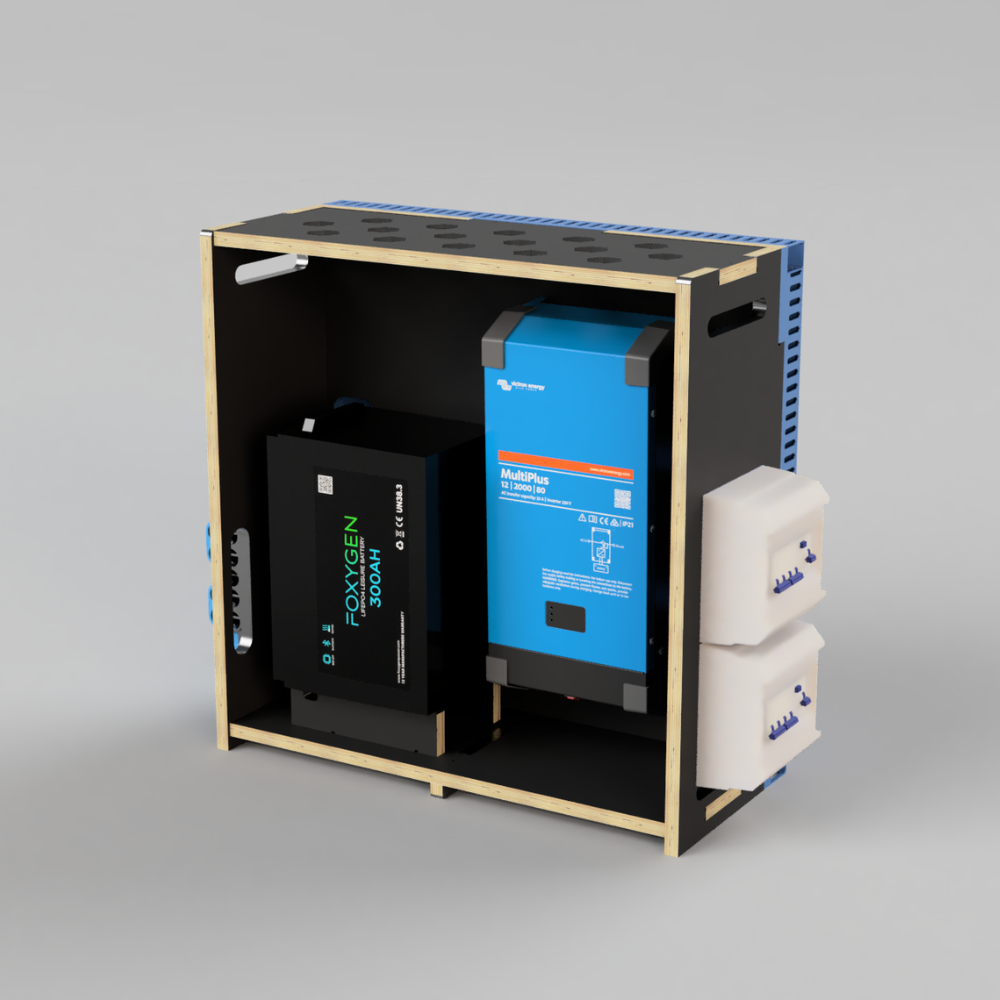

- Pre-built system - we do the hard work for you. Your main electrical components are professionally mounted to the hex ply boards, wired together and neatly routed through trunking. Once it arrives, simply secure the boards in your van and make the final connections to your battery, vehicle, solar, shore hookup and loads. The final installation can typically be completed in just a few hours.
- Fully installed - leave the entire installation to us. We'll build and install the system into your campervan at our Plymouth workshop, giving you a professionally fitted system completed by our NCC Approved Workshop.
What's included?
Whichever option you choose, the Adventurer comes with all the electrical components, cables, fuses and installation materials required to complete your system.
Main electrical components
- Victron MultiPlus 12/2000/80-32 inverter/charger
- Victron Cerbo GX MK2 & GX Touch 50 for system monitoring and control
- Victron SmartShunt 300A battery monitor
- Victron Orion-Tr Smart 30A non-isolated battery-to-battery charger
- Victron SmartSolar MPPT 100/30 charge controller
- Victron Lynx Distributor
- Blue Sea 12V fuse board
- Foxygen 300Ah - 12V lithium leisure battery
Cables, fixings and install guides
We've included the smaller components needed to install your electrical system, so you don't have to source everything separately.
- Pre-cut and pre-crimped cables for the main electrical components
- All required fuses, terminals, crimps, connectors and fixings
- Battery and solar isolation switches
- System board and installation materials appropriate to your chosen supply option
- Detailed wiring diagrams and installation guidance
Please note: First-fix wiring from the electrical system to your appliances, lights, sockets and other electrical loads is not included. This will need to be supplied separately to suit your campervan layout.
Choose your solar setup
- 2x Victron BlueSolar 235W monocrystalline solar panels (470W total)
- 1x JA Solar 465W 48V monocrystalline solar panel
- No solar – exclude the solar panels if you don't need them
When you select a solar panel option, we also include the mounting brackets, adhesive, solar cable and cable entry glands needed for installation.
Wiring diagram & installation guidance
📊 All our complete systems come with a detailed installation guide for the final connections. So, you can install your system easily and be confident it’s set up correctly.
🧑💻 Our dedicated technical support engineer is on hand to support you throughout the install. So, if you need any help, contact us and we can guide you through the process.
Adventurer - use case
The Adventurer gives you multiple ways to keep your 300Ah Foxygen lithium battery charged, whether you're driving, connected to shore power or relying on solar.
The Victron MultiPlus 12/2000/80-32 provides 230V power when you're off-grid and charges your leisure battery when connected to shore hookup. A 30A Victron battery-to-battery charger keeps the battery topped up while you drive, while the SmartSolar MPPT manages up to 470W of solar charging.
For monitoring, the Cerbo GX MK2, GX Touch 50 and SmartShunt make it easy to keep track of your battery, charging and overall system performance.
With a large lithium battery bank, a 2000VA inverter and multiple charging sources, the Adventurer is ideal for longer trips, regular off-grid stays and higher power usage.
If you would like any advice on whether this kit is suitable for you, please get in touch.
Looking for a different campervan electrical kit?
Want to tweak this kit, change a component or save money by building your own system board?
Get in touch and our team can design a bespoke campervan electrical system to suit your needs, at no extra design cost.
Alternatively, explore our full range of campervan electrical kits, from complete electrical systems to individual subsystem kits. ⚡
