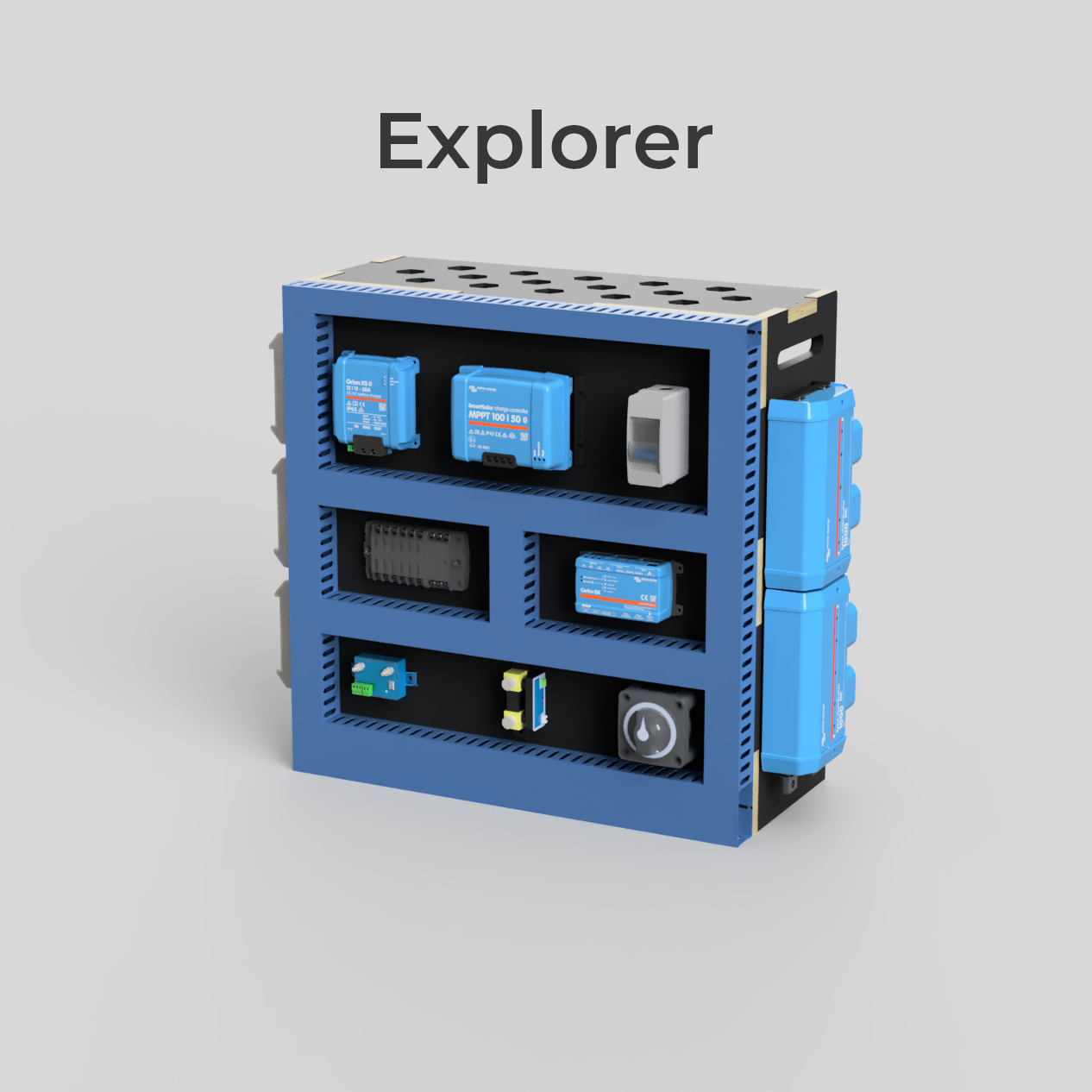

"Explorer Plus" - full campervan electrical kit with 2kVA inverter/charger, hookup, 450W solar, B2B & batteries
The Explorer Plus is one of our full campervan electrical kits, including:
- 2000VA Victron inverter/charger
- 50A battery to battery charger
- Blue Sea 12V fuse board
- Lynx Distributor
Plus, pick from the following options:
- 3x 150W Victron solar panels or 1x 440W JA Solar solar panel & MPPT charge controller
- Leisure batteries (include 230Ah Fogstar Drift lithium, 300Ah Fogstar Drift lithium, or exclude and choose a different option from our range of batteries)
- Inlet & cable (include a black square inlet & 25m cable, or exclude and choose your own)
Busbars, switches, cable, lugs, and everything else required to fully install this electrical system in your campervan are included in this kit.
Explorer Plus - full campervan electrical kit
Our full campervan electrical kits include everything you need to fully wire in a campervan electrical system. We include all cabling, fuses, cable lugs, etc., as well as a number of options to enhance the system.
This kit includes a 2000VA Victron inverter/charger, supplied with a consumer unit and 3 core cable.
We supply 3x 150W solar panels or 1x 440W JA Solar solar panel with L mounting brackets and Soudaflex. Simply use the Soudaflex sealant to bond the panel to the roof of your van. Self-tapping screws are included to connect the brackets to your panels.
A 100/30 Victron MPPT charge controller is also included. If you choose to include smart functionality, we will supply the SmartSolar version which can be configured and monitored via the Victron Connect app on your phone. Otherwise, we will include the BlueSolar version.
The 50A Orion XS non-isolated battery to battery charger lets you recharge your leisure batteries as you drive. Please note - the non-isolated model requires a common chassis ground (most standard vehicles will have this).
For your 12V distribution and loads, we include a Blue Sea 12V fuse board.
Choose to include a 300Ah Fogstar Drift PRO lithium battery, or opt for the 'no battery' option and pick an alternative from our range of leisure batteries.
We include Fogstar batteries in all of our lithium battery systems, as these are the most cost effective lithium battery on the market. We believe they offer the best balance between cost and performance.
Distribute power from your leisure batteries to the rest of your system using a Lynx Distributor. We'll also include an isolator switch so you can isolate power to the rest of the system. We also include a grounding busbar so all components can be grounded to this, and you can make a single grounding connection to the chassis.
This kit includes every single product you need to fully install your campervan electrical system. So as well as the major components, every cable, fuse, holder, switch and lug is included.
Wiring diagram & installation guidance
📊 All our kits come with a detailed wiring diagram and installation guide. So, you can install your system easily and be confident it’s set up correctly.
🧑💻 Our dedicated technical support engineer is on hand to support you throughout the install. So, if you need any help, contact us and we can guide you through the process.
Explorer Plus - use case
This kit is suitable for someone who will spend their time mostly off-grid. It also includes a shore hook up, so you'll be able to recharge from a campsite.
The 300Ah leisure battery and 450W solar array is suitable for someone with medium power usage. For example, common appliances might include a 12V fridge, water pump, lights, phones, laptops, blenders, and speakers. The 2000VA inverter will also be able to run higher-wattage 230V mains appliances for a shorter time, such as hair dryers or small induction hobs.
The Explorer Plus is most suitable for someone using their van for holidays and longer trips. However, it would also be suitable for someone living in their van full-time if they have medium power requirements. The optional Lithium battery is suitable for most people whose usage fits this description. Check out our guidebook page on campervan leisure batteries to read more about choosing one that's right for you.
If you would like any advice on whether this kit is suitable for you, please get in touch.
